Full Plastic IP65 Waterproof Electrical Panel Box Electrical Distribution board Outdoor
Product Features
1. Panel is the ABS material for engineering , high strength , never change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type opening and closing mode , the face mask can be opened by pressing lightly , the self - locking positioning hinge structure is provided when opening.
4. Wiring design of the power distribution box.
5. The guide rail support plate can be lifted to the higest movable point , it is no longer limited by the narrrow space when installing the wire . To install easily , the switch of the distribution box is set up with the wire grooves and wire pipe exitholes , whcih are easy to use for a variety of wire grooves and wire pipes.
Product Design
Overall design: unique corner design, with three-dimensional feeling of space.
Internal design: the guide rail for fixing the circuit breaker is installed, which is more convenient.
Back design: surface mounted shell, more convenient installation, smooth surface, no miscellaneous color spots.
Side design: knock off the side hole when in use and waterproof when not in use.
Application
TSM series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Product Parameters
| Model | TSM-4 |
| Mounting Type | surface mounting |
| Box Size | 112*200*95mm |
| Accessories | bolt, din rail , terminal |
| Application | residential and commercial buildings |
| Approval | CE |
| Circuit Breaker Rail | galvanised Steel |
| Surface Treatment | coated |
| Package | in color box or neutral carton |
| OEM | offered |

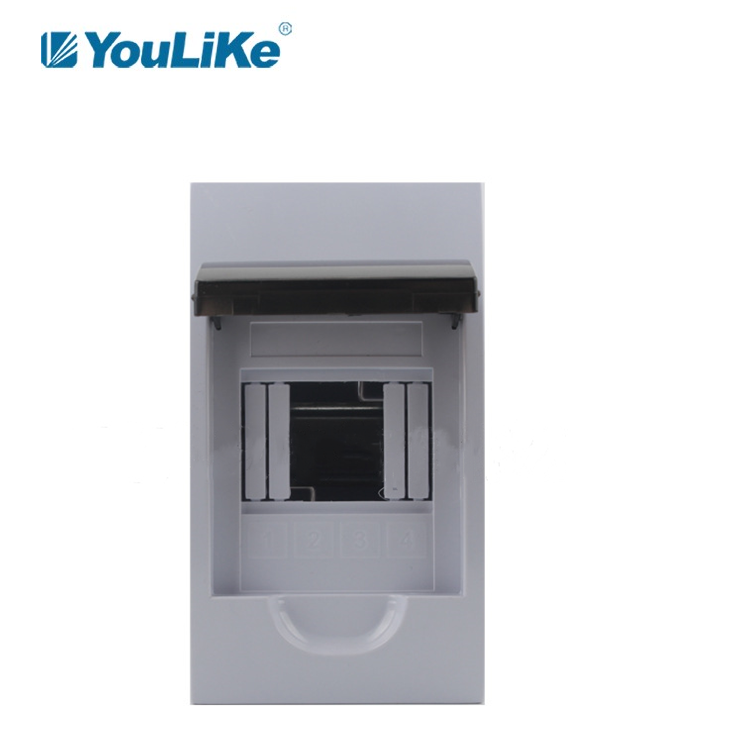

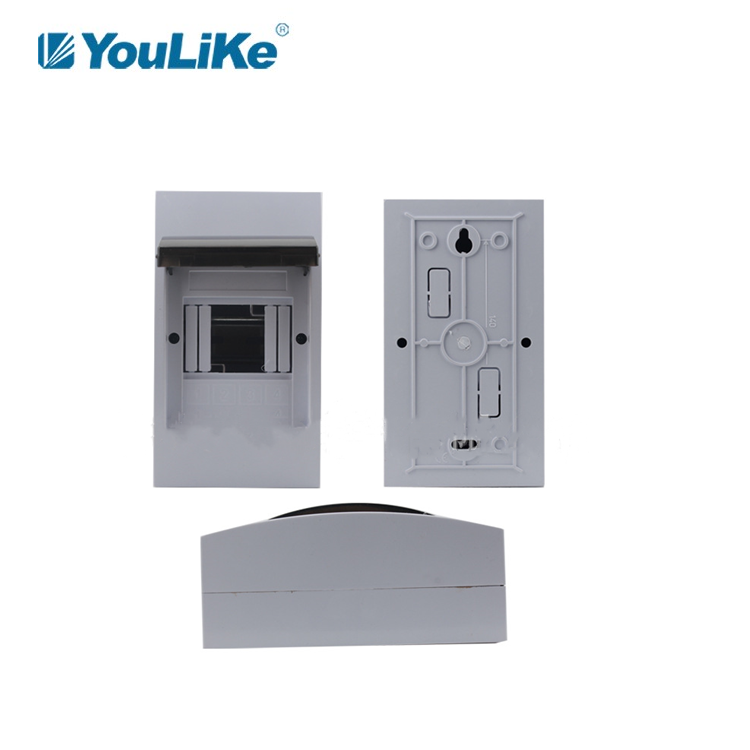

Product Image
Specifications of TSM series, Surface/Flush
| Number | Model | Way | Box size(surface) | Box size(flush) | Cartons |
| L*H*T (mm) | L*H*T (mm) | pcs |
| #1 | TSM2-3 | 2-3way | 95*150*60 | 95*150*60 | 50 |
| #2 | TSM4 | 4way | 112*200*95 | 136*221*90 | 30 |
| #3 | TSM6 | 6way | 148*200*95 | 172*221*90 | 30 |
| #4 | TSM8 | 8way | 184*200*95 | 208*221*90 | 30/20 |
| #5 | TSM10 | 10way | 222*200*95 | 246*221*90 | 20 |
| #6 | TSM12 | 12way | 256*200*95 | 278*221*90 | 20 |
| #7 | TSM15 | 15way | 310*200*95 | 334*221*90 | 15 |
| #8 | TSM18 | 18way | 360*200*100 | 398*251*100 | 15/10 |
| #9 | TSM24 | 24way | 270*328*100 | 300*350*100 | 10 |
| #10 | TSM36 | 36way | 270*460*100 | 300*482*100 | 5 |
| #11 | TSM45 | 45way | 325*470*100 | 365*505*110 | 5 |
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
Our Factory
Application
Certifications
Exhibitions
Packaging & Shipping
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the courier charge should be paid by your side.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: Do you accept to print my logo on distribution box product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
