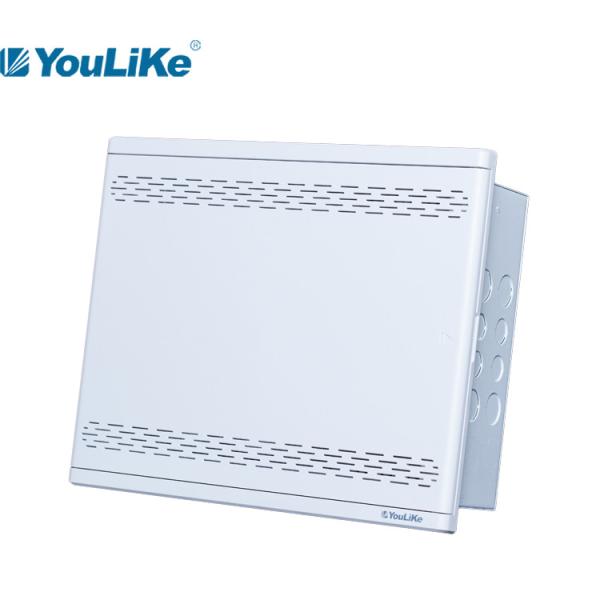

IP30 Indoor Optical Power Distribution Box Network Device Management Box Multimedia Information Box
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP30.
Product Specification
1. Box to be powder coated steel, 1.0mm for 1rows, 1.2mm for 2rows.
2. Cover frame to be 1.2mm powder coated steel material.
3. Door to be 1.2mm powder coated steel.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of DMT-N series, Flush
| Model | Cover material | Cover size | Box size | Max. Module install capacity | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | one side qty |
| DMT-NS | ABS | 365*300*19(37.5) | 330*260*100*1.0 | 0 | 16 |
| DMT-NM | ABS | 395*340*19(37.5) | 360*300*100*1.0 | 2U | 18 |
| DMT-NL | ABS | 455*340*19(37.5) | 420*300*100*1.0 | 5U | 22 |
| DMT-NXL | ABS | 520*420*10(20) | 500*400*120*1.0 | 8U | 24 |
Product Details Demonstration
Application
DMT-N series is used for indoor TV, telephone and network distribution for house/apartment usage.
1. ONU mounting bracket is powder coated steel.
2. Optical cable tray is used for optical cable wiring isolation from other components.
3. PDU is as per CCC standard and optionla for clients in case it is unworkable.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Module mounting stand is plastic and modules to be fix by screws.
6. ABS clapboard to seperate modem and router for better signal transmission and radiating efficience.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| DMT-NS | 420*175*365 | 0.0269 | 1 | 9.58 | |
| DMT-NM | 450*195*405 | 0.0356 | 1 | 14.66 | |
| DMT-NL | 510*195*405 | 0.0403 | 1 | 17.10 | |
| DMT-NXL | 585*170*490 | 0.0488 | 1 | | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
